无人机干扰功放模块

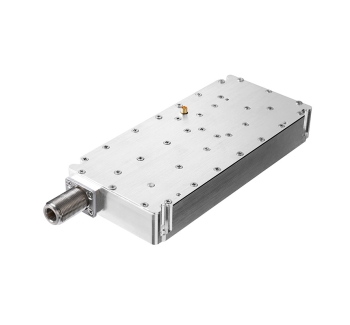

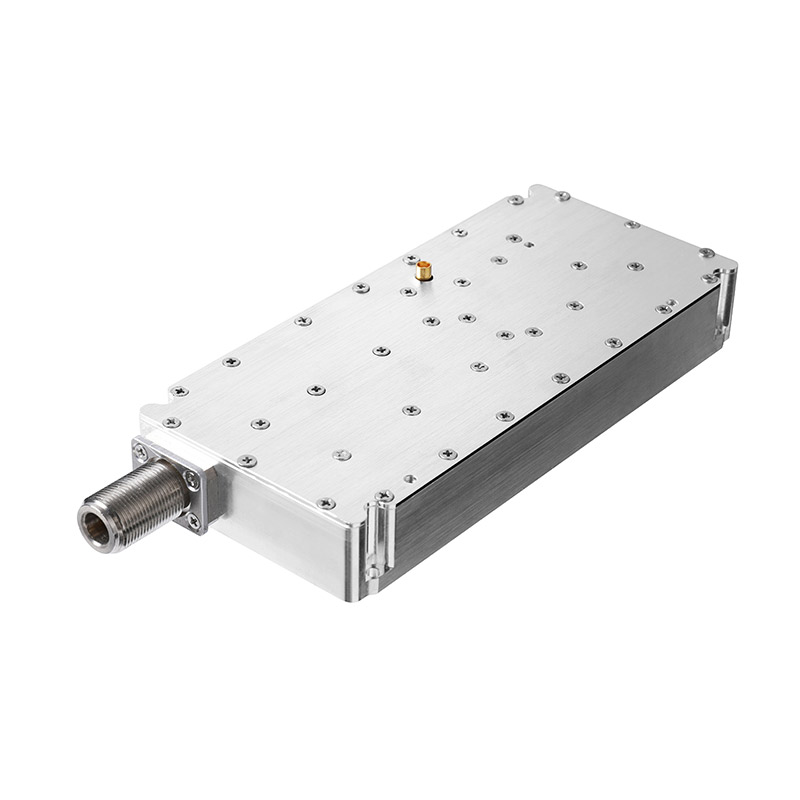

2.4G无人机反制模块功放模块射频放大器

2.4G无人机反制模块功放模块射频放大器

模块频段规格型号功率带宽电源电压工作温度通讯接口通信接口监控功能定制OEM/ODM900MYX0900-4530W915-928MHz36.0V∽48.0V-25℃∽65℃RS485OUT-SMA带监控OEM1.4GYX1400-50100W1430-1444MHz24.0V∽32.0V-25℃∽65℃RS485OUT-N带监控OEM1.6GYX1600-4530W1550-1620MHz36.0

模块频段	规格型号	功率	带宽	电源电压	工作温度	通讯接口	通信接口	监控功能	定制OEM/ODM
900M	YX0900-45	30W	915-928MHz	36.0V∽48.0V	-25℃∽65℃	RS485	OUT-SMA	带监控	OEM
1.4G	YX1400-50	100W	1430-1444MHz	24.0V∽32.0V	-25℃∽65℃	RS485	OUT-N	带监控	OEM
1.6G	YX1600-45	30W	1550-1620MHz	36.0V∽48.0V	-25℃∽65℃	RS485	OUT-SMA	带监控	OEM
2.4G	YX2400-45	30W	2400-2500MHz	36.0V∽48.0V	-25℃∽65℃	RS485	OUT-SMA	监控可选	OEM
2.4G	YX2400-50	100W	2400-2500MHz	24.0V∽32.0V	-25℃∽65℃	RS485	OUT-N	带监控	OEM
5.2G	YX5200-45	30W	5150-5350MHz	36.0V∽48.0V	-25℃∽65℃	RS485	OUT-SMA	带监控	OEM
5.8G	YX5800-45	30W	5725-5850MHz	36.0V∽48.0V	-25℃∽65℃	RS485	OUT-SMA	带监控	OEM
100-500MHz	YX-PA50W100M500JK1	200W	100-500MHz	24.0V∽36.0V	-25℃∽65℃	RS485	OUT-N	带监控	OEM
700-960MHz	YX-PA50W700-960JK1	200W	700-960MHz	24.0V∽36.0V	-25℃∽65℃	RS485	OUT-N	带监控	OEM
900-1300MHz	YX-PA50W900-1300JK1	200W	900-1300MHz	24.0V∽36.0V	-25℃∽65℃	RS485	OUT-N	带监控	OEM
1300-1800MHz	YX-PA50W1300-1800JK1	200W	1300-1800MHz	24.0V∽36.0V	-25℃∽65℃	RS485	OUT-N	带监控	OEM
2200-2700MHz	YX-PA50W2200-2700JK1	200W	2200-2700MHz	24.0V∽36.0V	-25℃∽65℃	RS485	OUT-N	带监控	OEM
4200-5460MHz	YX-PA50W100M500JK1	50W	4200-5460MHz	24.0V∽36.0V	-25℃∽65℃	RS485	OUT-N	带监控	OEM
5100-5900MHz	YX-PA50W100M500JK1	50W	5100-5900MHz	24.0V∽36.0V	-25℃∽65℃	RS485	OUT-N	带监控	OEM
300-930M	YX-PA50W300M930JK1	50W	300-930MHz	24.0V∽36.0V	-25℃∽65℃	RS485	OUT-N	带监控	OEM
930-1500MHZ	YX-PA50W930M1500JK2	50W	930-1500MHz	24.0V∽36.0V	-25℃∽65℃	RS485	OUT-N	带监控	OEM
1500-2400MHZ	YX-PA50W1500M2400JK3	50W	1500-2400MHz	24.0V∽36.0V	-25℃∽65℃	RS485	OUT-N	带监控	OEM
2400-4000MHZ	YX-PA50W2400M4000JK5	50W	2400-4000MHz	24.0V∽36.0V	-25℃∽65℃	RS485	OUT-N	带监控	OEM
4000-6000MHZ	YX-PA50W4000M6000JK6	50W	4000-6000MHz	24.0V∽36.0V	-25℃∽65℃	RS485	OUT-N	带监控	OEM
2400-2500MHZ	YX-PA200W2400M2500JK4	200W	2400-2500MHz	24.0V∽36.0V	-25℃∽65℃	RS485	OUT-N	带监控	OEM
